The COP32TFT is a powerful all-in-one solution for modern elevator cabins. It combines the cabin interface board and a high-resolution TFT display into a single system and serves as the central control unit within the cabin.

With display sizes ranging from 4 to 9 inches and a resolution of 800 × 480 pixels, the board offers flexible and clear visualization of elevator information. Thanks to extensive configuration options, the display can be customized to meet specific design and functional requirements.

The integrated functionality includes, among other things, an optionally expandable voice output for acoustic passenger information, as well as an optional RFID card reader for controlling access and special functions. Additionally, emergency call suppression and acoustic signaling ensure an enhanced level of safety. Furthermore, flexible display layouts and templates enable a customized presentation for car, floor, or group operation.

Parameterization is conveniently performed via touchscreen or, optionally, via a USB mouse. Configurations and updates are efficiently managed via SD card.

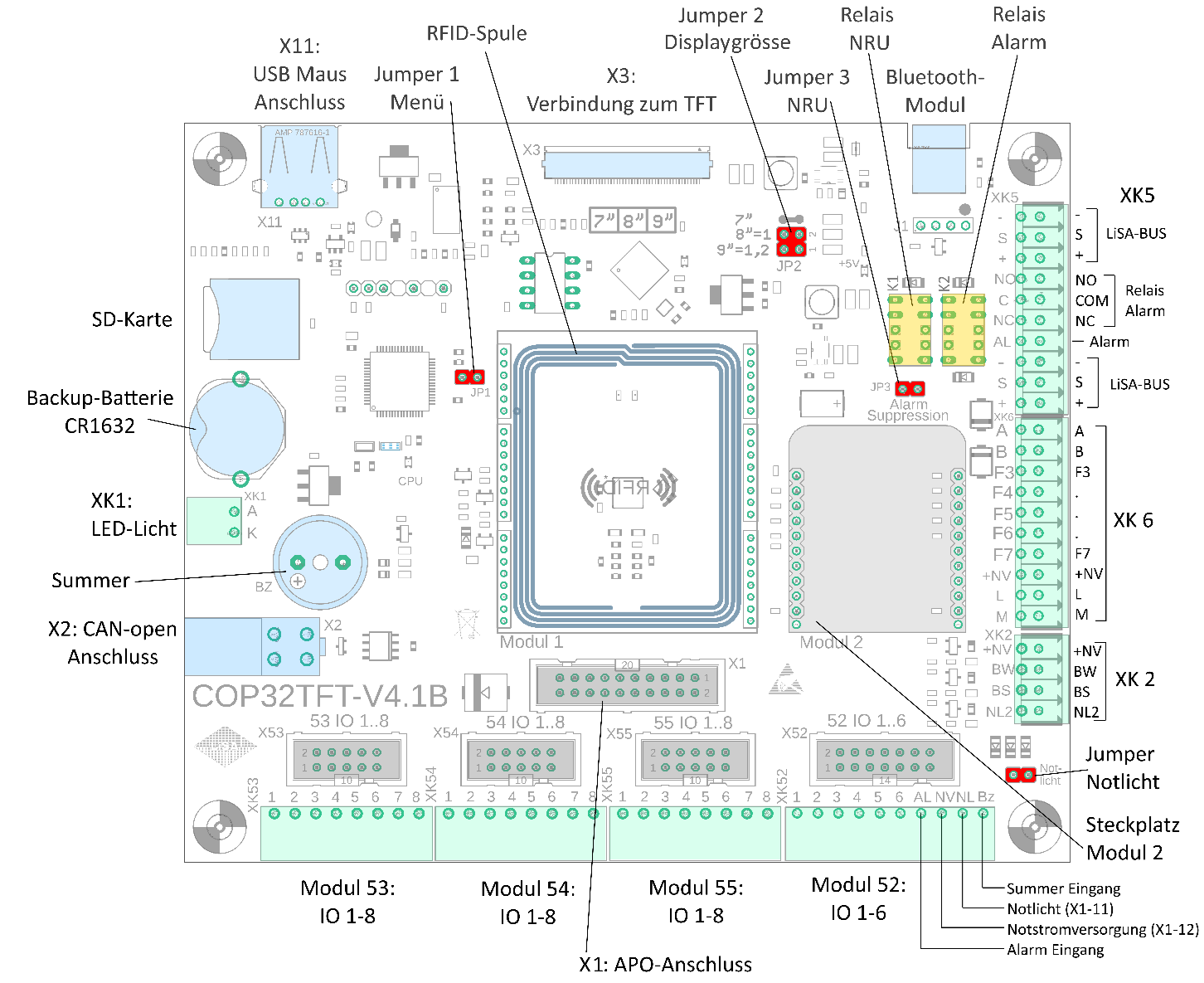

Thanks to the wide range of interfaces (including CAN bus) and freely programmable I/Os, the COP32TFT can be seamlessly integrated into existing control systems and individually expanded.
